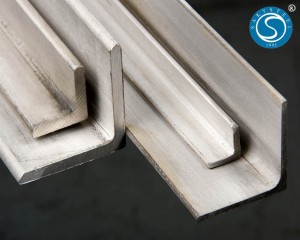

316 irin alagbara, irin igun bar
Apejuwe kukuru:
| Awọn pato ti igun Pẹpẹ irin alagbara, irin: |
| Standard | ASTM A276, A484, A479, A580, A582, JIS G4303, JIS G4311, DIN 1654-5, DIN 17440, KS D3706, GB/T 1220 |
| Ohun elo | 201,202,205,XM-19 ati be be lo. 301,303,304,304L,304H,309S,310S,314,316,316L,316Ti,317,321,321H,329,330,348 ati be be lo. 409,410,416,420,430,430F, 431,440 2205,2507,S31803,2209,630,631,15-5PH,17-4PH,17-7PH,904L,F51,F55,253MA ati be be lo. |
| Dada | Annealed pickled,iyanrin aruwo,imọlẹ,ila irun,,digi |
| Imọ ọna ẹrọ | Gbona Rolled,Welded,Tẹ |
| Awọn pato | 20 * 20 * 3mm - 100 * 100 * 10mm tabi bi o ṣe nilo igun aidogba |
| Ifarada | bi beere |
Sakysteel ni316 alagbara, irin igunolupese ati awọn olupese ni china, amọja ni iwadii, idagbasoke ati iṣelọpọ ti igun irin alagbara 316;
Ọpa Alailowaya AISI 316L, SUS316L, S31603, EN1.4404, X2CRNIMO, SS 316L Angle Corrosion sooro ni ọpọlọpọ awọn agbegbe omi okun ati kemikali ati idena ipata to dara julọ, iwuwo kg / m = 0.00798 × sisanra (iwọn 2 - sisanra)
| ITOJU | WORKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 316 | 1.4401 / 1.4436 | S31600 | SUS 316 | 316S31 / 316S33 | - | Z7CND17-11-02 | X5CrNiMo17-12-2 / X3CrNiMo17-13-3 |
| SS 316L | 1.4404 / 1.4435 | S31603 | SUS 316L | 316S11 / 316S13 | 03Ch17N14M3 / 03Ch17N14M2 | Z3CND17-11-02 / Z3CND18-14-03 | X2CrNiMo17-12-2 / X2CrNiMo18-14-3 |
| SS 316/316L igun igi Kemikali ati awọn ohun-ini ẹrọ: |
| Ipele | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 316 | ti o pọju 0.08 | 2.0 ti o pọju | 1.0 ti o pọju | ti o pọju 0.045 | ti o pọju 0.030 | 16.00 - 18.00 | 2.00 - 3.00 | 11.00 - 14.00 | 67.845 iṣẹju |
| SS 316L | ti o pọju 0.035 | 2.0 ti o pọju | 1.0 ti o pọju | ti o pọju 0.045 | ti o pọju 0.030 | 16.00 - 18.00 | 2.00 - 3.00 | 10.00 - 14.00 | 68.89 iṣẹju |
| iwuwo | Ojuami Iyo | Agbara fifẹ | Agbara ikore (0.2% aiṣedeede) | Ilọsiwaju |
| 8.0 g / cm3 | 1400°C (2550°F) | Psi – 75000, MPa – 515 | Psi – 30000 , MPa – 205 | 35% |
| Awọn titobi irin igun irin alagbara: |
| Iwọn (mm) | Iwọn funmita (Kg) | Iwọn (mm) | Iwọn funmita (Kg) |
| 20 x 20 x 3 | 0.88 | 50 x 50 x 10 | 7.11 |
| 25 x 25 x 3 | 1.12 | 60 x 60 x 5 | 4.58 |
| 25 x 25 x 5 | 1.78 | 60 x 60 x 6 | 5.40 |
| 25 x 25 x 6 | 2.09 | 60 x 60 x 10 | 8.69 |
| 30 x 30 x 3 | 1.35 | 70 x 70 x 6 | 6.35 |
| 30 x 30 x 5 | 2.17 | 70 x 70 x 10 | 10.30 |
| 30 x 30 x 6 | 2.56 | 75 x 75 x 6 | 7.37 |
| 40 x 40 x 3 | 1.83 | 75 x 75 x 10 | 11.95 |
| 40 x 40 x 5 | 2.96 | 80 x 80 x 6 | 7.89 |
| 40 x 40 x 6 | 3.51 | 80 x 80 x10 | 12.80 |
| 50 x 50 x 3 | 2.30 | 100 x 100 x 6 | 9.20 |
| 50 x 50 x 5 | 3.75 | 100 x 100 x 10 | 15.0 |
| 50 x 50 x 6 | 4.46 |
