stainless steel cable
Short Description:
| Specifications of Stainless steel cable: |
1. Standard: ASTM/JIS/GB
2. Grade: SS304L, SS304, SS316
3. Diameter Range: 1-10 mm, 10-20 mm, 20-30 mm
4. Types of Cables: Compacted Ropes Wires, Rotation Resistant Ropes Wires, Coated Rope Wires
5.Surface: bright smooth surface.
6.Features: Stainless Steel Cables have smooth surface, high corrosion resistant, high fatigue strength, excellent heat resistance and are free from Lateral / longitudinal cracks, pits and marks etc
6.Applications:Sakysteel’s stainless steel wire rope used for wire drawing, weaving ,hose,wire ropes, filtration equipment, steel strand, spring, electronic instruments, medical treatment, Army use bulletproof, Anti-theft devices, Labor protection, Grain nail,etc.
| Sakysteel Stainless Steel Wire Ropes Contruction: |
 |
CONTURCTION COMPACTED STRAND 1×7 | ||||
| Product Code | Diameter (mm) | M.B.L (kn) | M.B.L (Kg) | Weight Kg/100m | |
| WR02(1×7)-C | 2 | 4.11 | 440 | 2.2 | |
| WR025(1×7)-C | 2.5 | 6.76 | 690 | 3.4 | |
| WR03(1×7)-C | 3 | 9.81 | 1,000 | 4.9 | |
| WR035(1×7)-C | 3.5 | 13.33 | 1,360 | 6.8 | |
| WR04(1×7)-C | 4 | 17.46 | 1,780 | 8.8 | |
 |
CONTURCTION COMPACTED STRAND 1×19 | ||||
| Product Code | Diameter (mm) | M.B.L (kn) | M.B.L (Kg) | Weight Kg/100m | |
| WR04(1×19)-C | 4 | 17.46 | 1,780 | 9.1 | |
| WR05(1×19)-C | 5 | 25.49 | 2,600 | 14.2 | |
| WR06(1×19)-C | 6 | 35.29 | 3,600 | 20.5 | |
| WR07(1×19)-C | 7 | 49.02 | 5,000 | 27.9 | |
| WR08(1×19)-C | 8 | 61.76 | 6,300 | 36.5 | |
| WR10(1×19)-C | 10 | 98.04 | 10,000 | 57 | |
| WR12(1×19)-C | 12 | 143.15 | 14,500 | 82.1 | |
 |

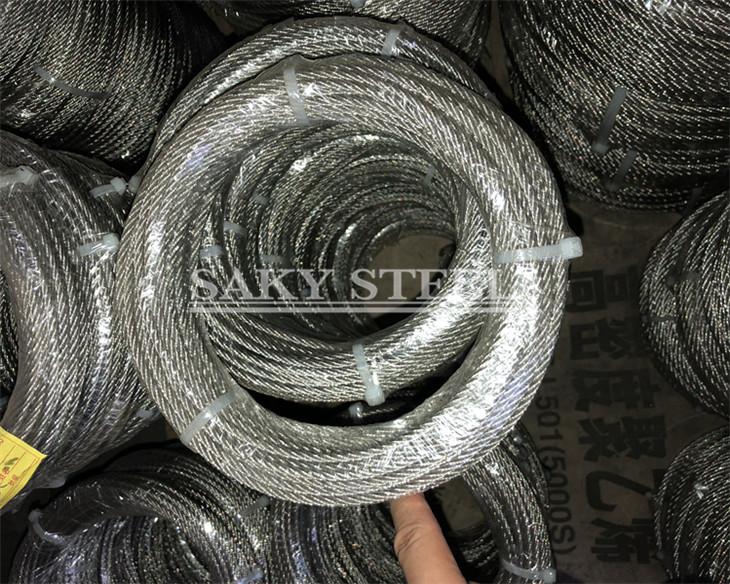

CONTRUCTION 7×7 | ||||
| Product Code | Diameter (mm) | M.B.L (kn) | M.B.L (Kg) | Weight Kg/100m | |
| WR01(7×7) | 1 | 0.56 | 57 | 0.38 | |
| WR012(7×7) | 1.2 | 1.13 | 115 | 0.5 | |
| WR015(7×7) | 1.5 | 1.26 | 128 | 0.86 | |
| WR018(7×7) | 1.8 | 1.82 | 186 | 1.3 | |
| WR02(7×7) | 2 | 2.24 | 228 | 1.54 | |
| WR025(7×7) | 2.5 | 3.49 | 356 | 2.4 | |
| WR03(7×7) | 3 | 5.03 | 513 | 3.46 | |
| WR04(7×7) | 4 | 8.94 | 912 | 6.14 | |
 |
CONTRUCTION 7×19 | ||||
| Product Code | Diameter (mm) | M.B.L (kn) | M.B.L (Kg) | Weight Kg/100m | |
| WR05(7×19) | 5 | 13 | 1,330 | 9.3 | |
| WR06(7×19) | 6 | 18.8 | 1,920 | 13.4 | |
| WR07(7×19) | 7 | 25.5 | 2,600 | 18.2 | |
| WR08(7×19) | 8 | 33.4 | 3,410 | 23.8 | |
| WR10(7×19) | 10 | 52.1 | 5,310 | 37.2 | |
| WR12(7×19) | 12 | 85.1 | 7,660 | 53.6 | |

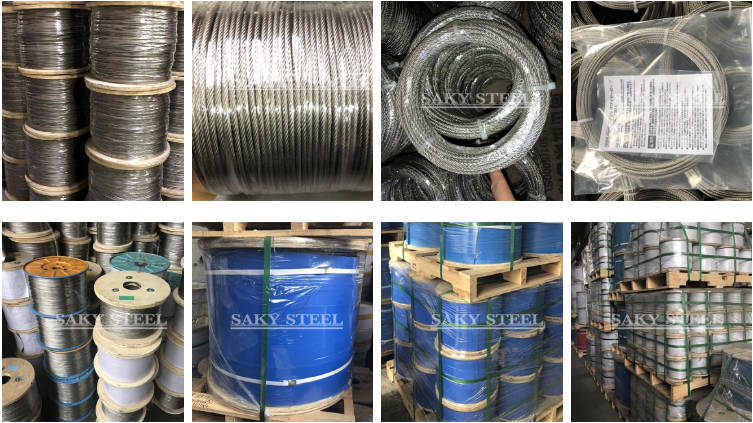

| Stainless steel cable Package: |
1000m, 2000m/ wooden wheel, 100m/coil, 300m,500m/roll ,wooden wheel, wooden pallet,reel wrap with PP colth;
Stainless steel cables FAQ:
Q1. Can I have a sample order for stainless steel cables products?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days;
Q3. Do you have any MOQ limit for stainless steel cables products order?
A: Low MOQ, 1pcs for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional. For mass products, ship freight is prefered.
Q5. Is it OK to print my logo on products?
A: Yes. OEM and ODM are available for us.
Q6: How to ensure the quality?
A:Mill Test Certificate is supplied with shipment. If needed, a Third Party Inspection is acceptable or SGS
