C% | Si% | Mn% | P% | S% | Cr% | Ni% | N% | Mo% | Cu% |
0.08 | 1.0 | 2.0 | 0.045 | 0.03 | 18.0-20.0 | 8.0-10.0 | - | - | - |
T * S. | Y * S. | Gukomera | Kurambura |
(Mpa) | (Mpa) | HRB | HB | (%) |
520 | 205 | - | - | 40 |
ibyuma bitagira umuyonga Ibikoresho bya Rod biva muri Sakysteel: |
304 ibyuma bidafite ingese | | 304 ibyuma bidafite ingese |
Ibisobanuro birambuye bya304 ibyumainkoni y'insinga: |
A) Ibyiciro:
Urukurikirane 200: 201, 202
Urukurikirane 300: 01,302,304,304L, 304H, 309S, 310S, 316.316L, 321.347…
Urukurikirane 400: 410.420,430.431,434…
B) Ibyiciro byo gukomera:
Byoroshye |1 / 4H |1 / 2H |3 / 4H |H |EH | SH
C) Itondekanya ry'ubuso:
Umucyo;Icyatsi;Oxidation;Gutwika;Umuringa;Kuyobora isahani n'ibindi
D) Ibyiciro Intego:
Ku mpeshyi;kubabaza ubukonje;gusudira;umugozi
E) Ibyiciro bifatika:
Magnetic / Nonmagnetic
F) Ibyiciro:
Umugozi uzunguruka;Igice cya kabiri cy'insinga;Umugozi wa kare;igitutu kiringaniye;insinga zifatika
Impamyabumenyi yaibyumainkoni y'insinga: |
Icyiciro | C | Si | Mn | Cr | N | P | S | Ni | Cu | Ti | Mo |
201 | 0.15 | 0.75 | 5.5 ~ 7.50 | 16.0 ~ 18.0 | 0.25 | 0.06 | 0.03 | 3.5 ~ 5.5 | 0,80% | | |
202 | 0.15 | 1.0 | 7.50 ~ 10.0 | 17.0 ~ 19.0 | 0.25 | 0.06 | 0.03 | 4.0 ~ 6.0 | - | | |
301 | 0.15 | 1.0 | 2.0 | 16.0 ~ 18.0 | - | 0.045 | 0.03 | 6.0 ~ 8.0 | - | | |
302 | 0.15 | 1.0 | 2.0 | 17.0 ~ 19.0 | - | 0.035 | 0.03 | 8.0 ~ 10.0 | - | | |
302HQ | 0.15 | 1.0 | 2.0 | 8.0 ~ 10.0 | - | 0.045 | 0.03 | 8.0 ~ 10.0 | 3 ~ 4 | | |
304 | 0.08 | 1.0 | 2.0 | 18.0 ~ 20.0 | - | 0.045 | 0.03 | 8.0 ~ 11.0 | - | | |
304L | 0.03 | 1.0 | 2.0 | 18.0 ~ 20.0 | - | 0.045 | 0.03 | 8.0 ~ 11.0 | - | | |
304H | 0.04 ~ 0.1 | 1.0 | 2.0 | 18.0 ~ 20.0 | - | 0.045 | 0.03 | 8.0 ~ 11.0 | - | | |
304N | 0.08 | 0.75 | 2.0 | 18.0 ~ 20.0 | 0.1 ~ 0.16 | 0.045 | 0.03 | 8.0 ~ 11.0 | - | | |
316 | 0.08 | 1.0 | 2.0 | 16 ~ 18.0 | - | 0.035 | 0.03 | 10.0 ~ 14.0 | - | | 2.0 ~ 3.0 |
316L | 0.03 | 1.0 | 2.0 | 16.0 ~ 18.0 | - | 0.045 | 0.03 | 10.0 ~ 14.0 | - | | 2.0 ~ 3.0 |
321 | 0.08 | 1.0 | 2.0 | 17.0 ~ 19.0 | - | 0.045 | 0.03 | 9.0 ~ 12.0 | - | 0.7 | |
410 | 0.15 | 1.0 | 1 | 11.5 ~ 13.5 | - | 0.040 | 0.03 | - | - | | |
420 | 0.3 ~ 0.4 | 1.0 | 1 | 12.0 ~ 14.0 | - | 0.040 | 0.03 | 0.75 | - | | |
430 | 0.12 | 0.75 | 1 | 16.0 ~ 18.0 | - | 0.040 | 0.03 | 0.60 | - | | |
AISI, ASTM | JIS | EN | Isoko | Gukora insinga | Umuyoboro wa EPQ | Umugozi wa CHQ | Kuboha insinga | Umugozi | Flat Wire |
201, S20100 | SUS201 | 1.4372 | v | v | v | v | | v | v |
202, S20200 | SUS202 | 1.4373 | v | | | | | v | v |
301, S30100 | SUS301 | 1.4310 | v | | | | | v | v |
302, S30200 | SUS302 | 1.4300 | v | | | | | v | v |
302HQ | SUS302HQ | 1.4567 | v | v | | v | | | v |
304, S30400 | SUS304 | 1.4301 | v | v | v | | v | v | v |
304L, S30403 | SUS304L | 1.4306 | v | | | | | v | v |
304H | SUS304H | 1.4948 | v | | | | | v | v |
304N, S30451 | SUS304N1 | 1.4315 | | | | | | v | v |
316, S31600 | SUS316 | 1.4401 | v | v | v | v | v | | v |
316L, S31603 | SUS316L | 1.4435 | | v | | v | | v | v |
321, S32100 | SUS321 | 1.4878 | | | | | v | v | v |
410, S41000 | SUS410 | 1.4006 | | v | | v | | v | |
420, S42000 | SUS420J1 | 1.4021 | | | | v | | v | |
430, S43000 | SUS430 | 1.4016 | | v | | v | | v | v |
304 ibyuma bidafite ingese |

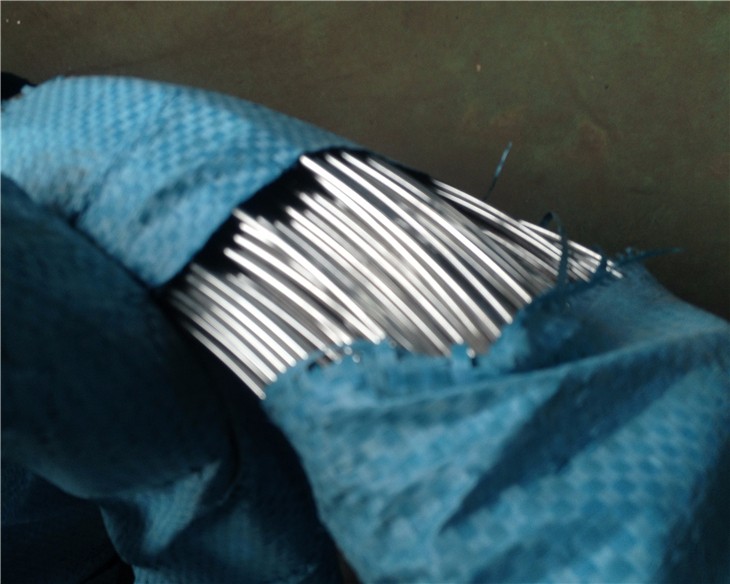

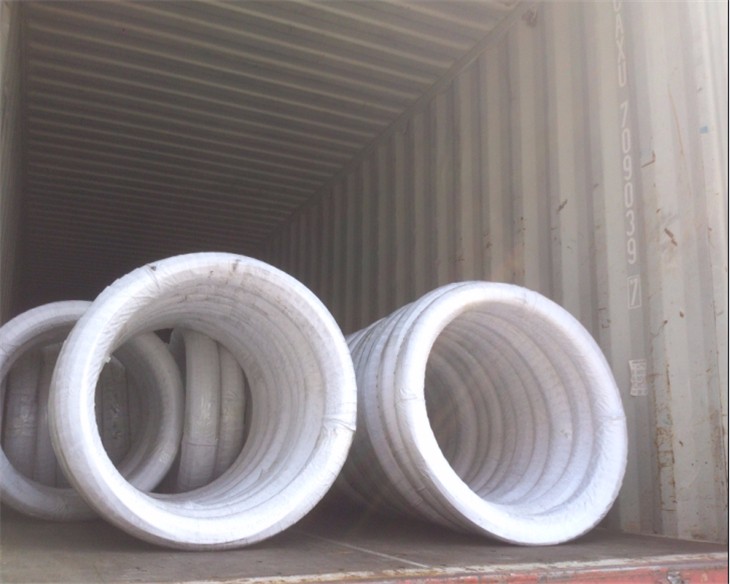

Sakysteel 304 insinga zidafite ibyuma Rod yapakiwe kandi yanditseho ukurikije amabwiriza nibisabwa nabakiriya.Hafashwe ingamba zikomeye zo kwirinda ibyangiritse bishobora guterwa mugihe cyo kubika cyangwa gutwara.
304 ibyuma bitagira umuyonga Inkoni yo kugurisha | | 304 ibyuma bidafite ingese |
