Hot rolled stainless steel angle bar

Short Description:


  • Standards: EN 10056, DIN 1028
  • Grade: SUS304, SUS304L, SUS316, SUS316L, SUS430
  • Delivery status: Hot Rolled, Pickled, Polished, Cold Drawn
  • Product Detail

    Product Tags

    Specifications of stainless steel Angle bar:

    Specifications : ASTM A276, ASME SA276, ASTM A479, ASME SA479

    Grade: 304, 304L, 316, 316L, 321

    Length : 6000, 6100 mm, 12000, 12100 mm & Required Length

    Angle bar size : 20*20*3mm -100*100*10mm or as required unequal angle

    Technology : Hot Rolled, Welded, Bend

    Surface Finish : Black, Bright, Polished, Rough Turned, NO.4 Finish, Matt Finish

    Form : Angle



    Product specifications:

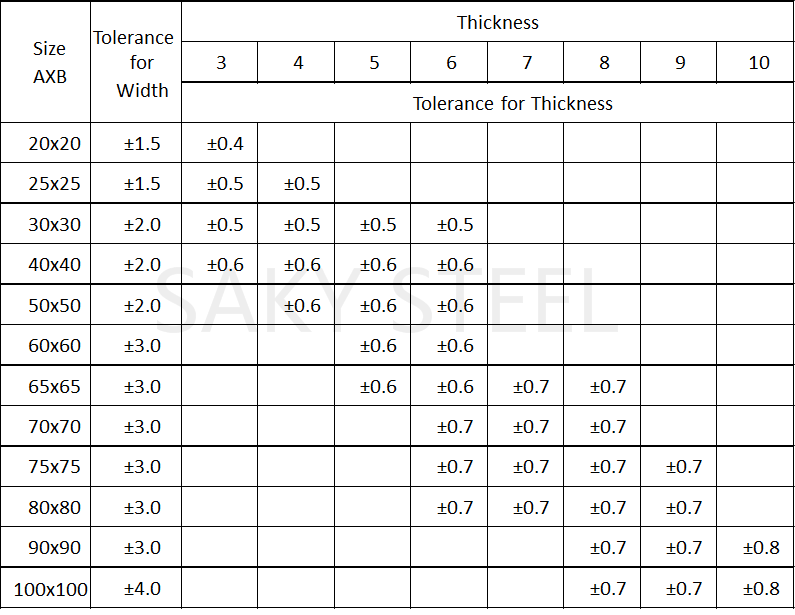

    Angle bar Dimensional tolerance



    Stainless Steel Angle Dimensions and Weight Chart:
    Stainless Steel Angle Bar Sizes (all Dimensions in mm) Approx Weight Stainless Steel Angle Bar (KG/Mtr) Stainless Steel Angle Bar Sizes (all Dimensions in mm) Approx Weight Stainless Steel Angle Bar (KG/Mtr)
    25 x 25 x 3 1.13 63 x 63 x 8 7.5
    25 x 25 x 4 1.46 65 x 65 x 4 4
    25 x 25 x 5 1.78 65 x 65x 5 5.02
    30 x 30 x 3 1.37 65 x 65 x 8 7.75
    30 x 30 x 4 1.78 70 x 70 x 5 5.35
    30 x 30 x 5 2.2 70 x 70 x 6 6.4
    40 x 40 x 3 1.83 75 x 75 x 6 6.85
    40 x 40 x 4 2.41 75 x 75 x 8 9.05
    40 x 40 x 5 2.97 80 x 80 x 6 7.35
    50 x 50 x 4 3.05 80 x 80 x 8 9.65
    50 x 50 x 5 3.78 80 x 80 x 10 11.98
    63 x 63 x 4 3.9 100 x 100 x 8 12.2
    63 x 63 x 5 3.9 100 x 100 x 12 18



    SAKY STEEL’S Packaging:

    1. Packing is quite important especially in a case of international shipments in which consignment pass through various channels to reach the ultimate destination, so we put special concern regarding packaging.
    2. Saky Steel’s pack our goods in numerous ways based on the products. We pack our products in multiple ways, such as,

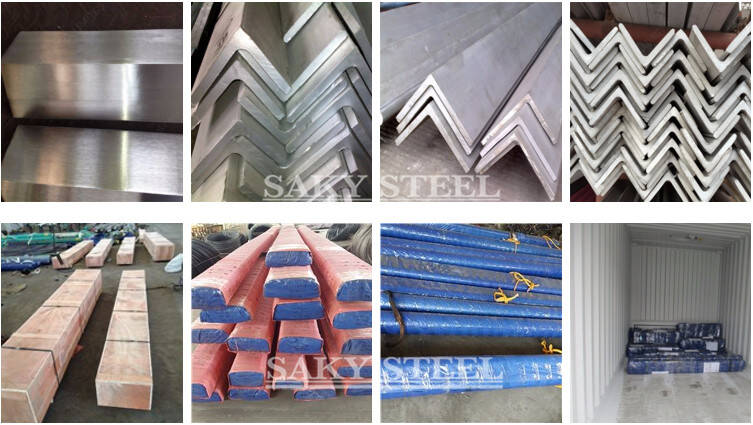

    304 stainless steel angle bar package



    Applications:  Water intake tank interior reinforcement
