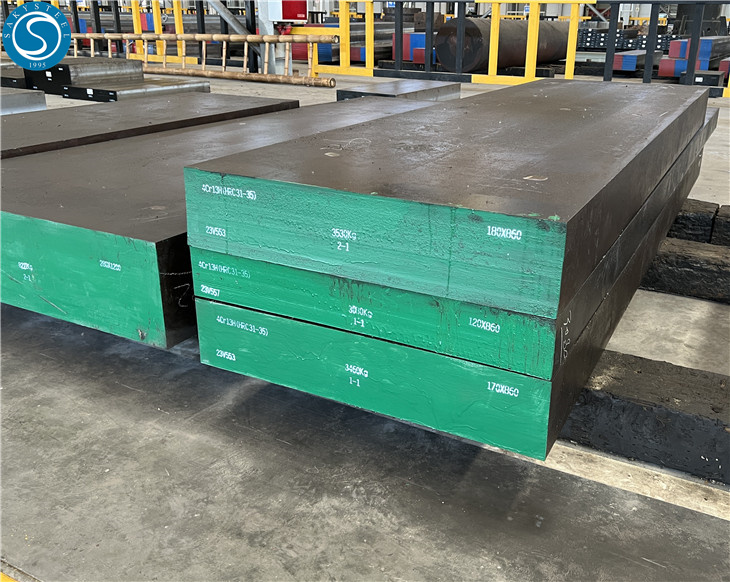

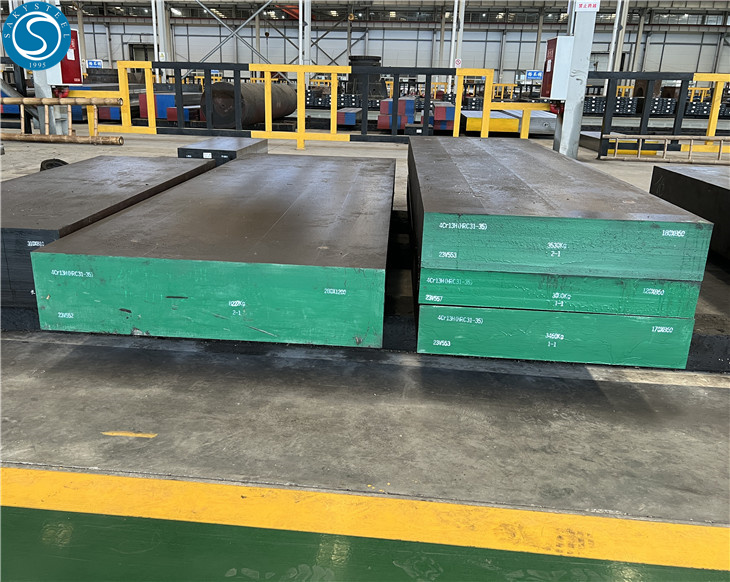

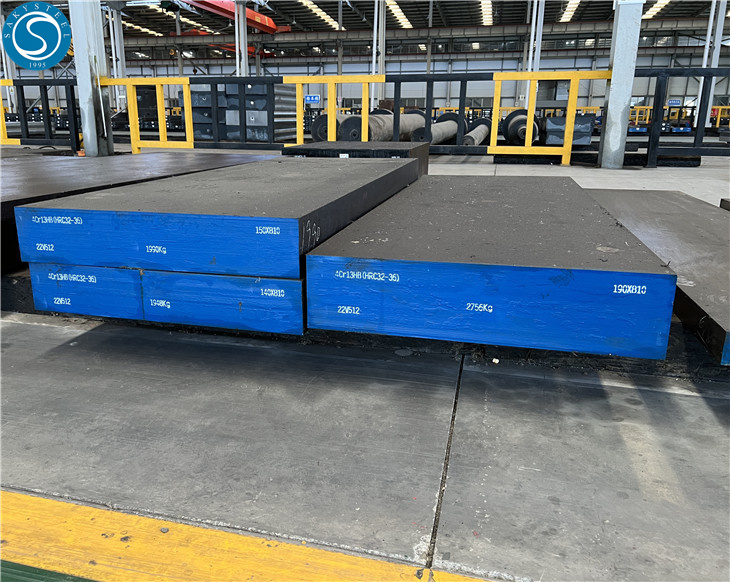

DIN 1.2311 P20 Mould Steel
Short Description:
DIN 1.2311″ is a common type of mold steel, often referred to as P20 steel. P20 is a low-alloy mold steel known for its good machinability and wear resistance, commonly used in the manufacturing of plastic molds and die-casting molds.
DIN 1.2311 P20 Mould Steel:
DIN 1.2311 P20 Mould Steel is a commonly used mold steel, widely used in the manufacturing of plastic molds and die-casting molds.DIN 1.2311 P20 Mould Steel has excellent cutting performance and machinability, making it easy to process into various shapes of molds.After appropriate heat treatment, DIN 1.2311 P20 Mould Steel can achieve high hardness and excellent wear resistance, suitable for manufacturing molds with high requirements.DIN 1.2311 P20 Mould Steel is commonly used in various mold applications such as injection molds, extrusion molds, die-casting molds, and mold bases.
Specifications Of 1.2311 TOOL STEELS:
Grade | 1.2311,P20 |
Standard | ASTM A681 |
Surface | Black; Peeled; Polished; Machined; Grinded; Turned; Milled |
Raw Materail | POSCO, Baosteel, TISCO, Saky Steel, Outokumpu |
1.2311 Equivalent Steel Grades:
Country | USA | German | GB/T |
Standard | ASTM A681 | DIN EN ISO 4957 | GB/T 1299 |
Grades | P20 | 1.2311 | 3Cr2Mo |
P20 TOOL STEELS Chemical Composition:
Standard | Grade | C | Si | Mn | P | S | Cr | Mo |
ASTM A681 | P20 | 0.28~0.40 | 0.2~0.8 | 0.60~1.0 | ≤0.030 | ≤0.030 | 1.4~2.0 | 0.3~0.55 |
GB/T 9943 | 3Cr2Mo | 0.28~0.40 | 0.2~0.8 | 0.60~1.0 | ≤0.030 | ≤0.030 | 1.4~2.0 | 0.3~0.55 |
DIN ISO4957 | 1.2311 | 0.35~0.45 | 0.2~0.4 | 1.3~1.6 | ≤0.030 | ≤0.030 | 1.8~2.1 | 0.15~0.25 |
1.2311 TOOL STEELS Mechanical Properties:
Properties | Metric |
Hardness, Brinell (Typical) | 300 |
Hardness, Rockwell C (Typical) | 30 |
Tensile Strength, Ultimate | 965-1030 MPa |
Tensile Strength, Yield | 827-862 MPa |
Elongation At Break (In 50 Mm (2″) | 20.00% |
Compressive Strength | 862 MPa |
Charpy Impact (V-Notch) | 27.1-33.9 J |
Poisson’s Ratio | 0.27-0.30 |
Elastic Modulus | 190-210 GPa |
Why Choose us ?
• You can get the perfect material according to your requirement at the least possible price.
• We also offer Reworks, FOB, CFR, CIF, and door to door delivery prices. We suggest you to do deal for shipping which will be quite economical.
• The materials we provide are completely verifiable, right from raw material test certificate to the final dimensional statement.(Reports will show on requirement)
• We guarantee to give a response within 24hours(usually in the same hour)
• Provide SGS TUV report.
• We are fully dedicated to our customers. If it will not possible to meet your requirements after examining all options, we will not mislead you by making false promises which will create good customer relations.
• Provide one-stop service.
Our Services
1.Quenching and tempering
2.Vacuum heat treating
3.Mirror-polished surface
4.Precision-milled finish
4.CNC machining
5.Precision drilling
6.Cut into smaller sections
7.Achieve mold-like precision
Packing:
1. Packing is quite important especially in a case of international shipments in which consignment pass through various channels to reach the ultimate destination, so we put special concern regarding packaging.
2. Saky Steel's pack our goods in numerous ways based on the products. We pack our products in multiple ways, such as,
