Annealed Stainless Steel Soft Wire

Short Description:

Grade: 301, 302, 303, 304

Diameter: 0.01-25mm

Surface: bright, cloudy, plain, black

Type: Hydrogen, Cold-drawn, Cold heading, Annealed

Send email to us Download as PDF

Product Detail

Product Tags

0.08 to 5.0mm Stainless Steel Wire Produce From Saky Steel:

Details of annealed stainless steel soft wire

Grade	304,310,314, 316, 321, 410, 420,430,430L
Standard	GB,SUS,ASTM,AISI
Diameter	0.01-25mm
Surface	bright, cloudy, plain, black
Condition	soft wire, semi-soft wire, hard wire
Type	Hydrogen, Cold-drawn, Cold heading, Annealed
Packing	in coil, bundle or spool then in carton, or as your request

Grades of annealed stainless steel soft wire

Material	Chemical composition
Grade	C	Si	Mn	P	S	Ni	Cr	Cu	Mo	Other
201	0.15	1	5.5-7.5	0.06	0.03	3.5-5.5	16-18			N<0.25
130M/202	0.15	1	7.5-10	0.06	0.03	4.00-6.00	17.0-19.0			N=0.25
301	0.15	1	2	0.45	0.03	6.0-8.0	16.0-18.0
302	0.15	1	2	0.45	0.03	8.0-10.0	17-19
302HQ	0.08	1	2	0.45	0.03	8.5-10.5	17-19	3.0-4.0
303	0.15	1	2	0.2	=0.15	8.0-10.0	17-19		=6.0
303Cu	0.15	1	3	0.2	=0.15	8.0-10.0	17-19	1.5-3.5	=6.0
304	0.08	1	2	0.045	0.03	8.0-10.0	18-20
304H	0.08	1	2	0.045	0.03	8.0-10.0	17-19
304HC	0.08	1	2	0.045	0.03	8.0-10.0	17-19	2.0-3.0
304HCM	0.08	1	2	0.045	0.03	8.0-10.0	17-19	2.5-4.0
304L	0.03	1	2	0.045	0.03	9.0-13.0	18-20
304M	0.06	1	2	0.045	0.03	8.9-10.0	18-20
304N1	0.08	1	2	0.045	0.03	7-10.5	18-20			N0.1-0.25
305	0.12	1	2	0.045	0.03	10.5-13	17-19
305J1	0.08	1	2	0.045	0.03	11-13.5	16.5-19
309S	0.08	1	2	0.045	0.03	12.0-15.0	22-24
301S	0.08	1.5	2	0.045	0.03	19-22	24-26
314	0.25	1.5-3	2	0.04	0.03	19-22	23-26
316	0.08	1	2	0.045	0.03	10.0-14.0	16-18		2.0-3.0
316Cu	0.03	1	2	0.045	0.03	10.0-14.0	16-18	2.0-3.0	2.0-3.0
316L	0.03	1	2	0.045	0.03	12.0-15.0	16-18		2.0-3.0
321	0.08	1	2	0.045	0.03	9.0-13.0	17-19			Ti=5
410	0.015	1	1	0.04	0.03		11.5-13.5
416	0.15	1	1.25	0.06	=0.15		12.0-14.0
420	0.26-4	1	1	0.04	0.03		12.0-14.0
410L	0.03	1	1	0.04	0.03		11.5-13.5
430	0.12	0.75	1	0.04	0.03		16-18
430F	0.12	1	1.25	0.06	0.15		16-18
631(ji)	0.09	1	1	0.04	0.03	6.5-8.5	16-18			AL0.75-1.5

SWG & BWG of annealed stainless steel soft wire

	SWG (MM )	BWG (MM )			SWG (MM)	BWG (MM)			SWG (MM )	BWG (MM )
0	8.230	8.636	0.340	17	1.422	1.473	0.058	34	0.234	0.178	0.007
1	7.620	7.620	0.300	18	1.219	1.245	0.049	35	0.213	0.127	0.005
2	7.010	7.214	0.284	19	1.016	1.067	0.042	36	0.193	0.102	0.004
3	6.401	6.579	0.259	20	0.914	0.889	0.035	37	0.173	*	0.0068
4	5.893	6.045	0.238	21	0.813	0.813	0.032	38	0.152	*	0.0060
5	5.385	5.588	0.220	22	0.711	0.711	0.028	39	0.132	*	0.0052
6	4.877	5.156	0.203	23	0.610	0.635	0.025	40	0.122	*	0.0048
7	4.470	4.572	0.180	24	0.559	0.559	0.022	41	0.112	*	0.0044
8	4.064	4.191	0.165	25	0.508	0.508	0.020	42	0.102	*	0.0040
9	3.658	3.759	0.148	26	0.457	0.457	0.018	43	0.091	*	0.0036
10	3.251	3.404	0.134	27	0.417	0.406	0.016	44	0.081	*	0.0032
11	2.946	3.048	0.120	28	0.376	0.356	0.014	45	0.071	*	0.0028
12	2.642	2.769	0.109	29	0.345	0.330	0.013	46	0.061	*	0.0024
13	2.337	2.413	0.095	30	0.315	0.305	0.012	47	0.051	*	0.0020
14	2.032	2.108	0.083	31	0.295	0.254	0.010	48	0.041	*	0.0016
15	1.829	1.829	0.072	32	0.274	0.229	0.009	49	0.031	*	0.0012
16	1.626	1.651	0.065	33	0.254	0.203	0.008	50	0.025	*	0.0010

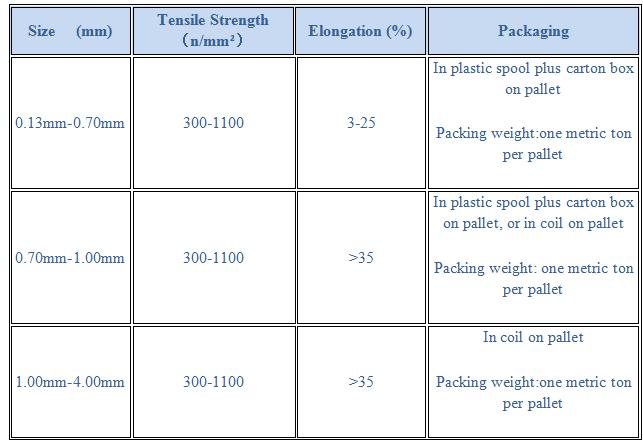

Physical properties of annealed stainless steel soft wire:

Hot Tags: annealed stainless steel soft wire manufacturers, suppliers, price, for sale

SAKY STEEL’S Packaging:

1. Packing is quite important especially in a case of international shipments in which consignment pass through various channels to reach the ultimate destination, so we put special concern regarding packaging.
2. Saky Steel’s pack our goods in numerous ways based on the products. We pack our products in multiple ways, such as,
