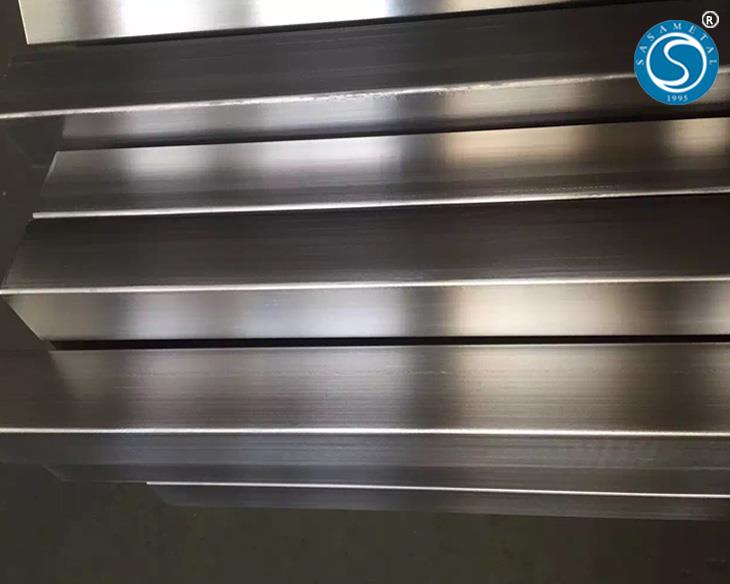

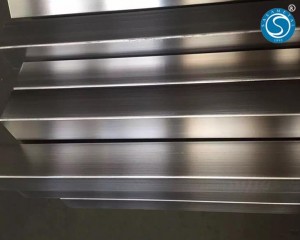

316 Stainless Steel Square Pipe/Tubing
Short Description:
TP316 Stainless Steel Square Tubing,SUS316,S31600,EN1.4401,X5CRNIMO,SS 316 corrosion resistant in a variety of marine and chemical environments and excellent corrosion resistance,weight(Kg/Meter)=0.02513*thick(mm)*(OD-thick)(mm)
| C% | Si% | Mn% | P% | S% | Cr% | Ni% | N% | Mo% | Ti% |
| 0.08 | 0.75 | 2.0 | 0.045 | 0.03 | 16.0-18.0 | 10.0-14.0 | – | 2.0-3.0 | – |
| Specifications of 316 Stainless Steel Square Pipe: |
| Name | 316 Stainless Steel Square Pipe Stainless Square Tubing |
|||||
| Standard | GB/T14975, GB/T14976, GB13296-91, GB9948 ,ASTM A312, ASTM A213, | |||||
| ASTM A269, ASTM A511,JIS349,DIN17456, ASTM A789, ASTM A790, DIN17456,DIN17458, EN10216-5, JIS3459,GOST 9941-81 | ||||||
| Material Grade | 304, 304L, 316, 316L, 321, 321H, 310S, 347H,309.317.0cr18N9, 0Cr25Ni20 | |||||
| 00Cr19Ni10,08X18H10T,S31803,S31500,S32750 | ||||||
| Outer Diameter | 6mm to 1219mm | |||||
| Thickness | 0.8mm – 40mm | |||||
| Size | OD (6-1219) mm x (0.9-40)mm x MAX 13000mm | |||||
| Tolerance | under the ASTM A312 A269 A213 standard | |||||
| under the ASTM A312 A269 A213 standard | ||||||
| under the ASTM A312 A269 A213 standard | ||||||
| Surface | 180G, 320G Satin / Hairline(Matt Finish, Brush, Dull Finish) | |||||
| PICKLING & ANNEALING | ||||||
| Application | Fluid and gas transport,decoration, construction,medical equipment, aviation, | |||||
| boiler heat-exchanger and other fields | ||||||
| Test | Flattening Test, Hydrostatic Test, Intergranular Corrosion Test, Flattening Test, Eddy Testing, etc | |||||
| Customized | other specifications according to customers’ requirements | |||||
| Delivery time | up to the order quantity | |||||
| Packing | Bundled with knitted plastic bag, wooden cases or according to customers’ request. | |||||
| Mechanical Property | Material Item | 304 | 304L | 304 | 316L | Top Technology |
| Tensile Strength | 520 | 485 | 520 | 485 | ||
| Yield Strength | 205 | 170 | 205 | 170 | ||
| Extension | 35% | 35% | 35% | 35% | ||
| Hardness (HV) | <90 | <90 | <90 | <90 | ||
| More details of Stainless Steel Square Pipe: |
| Grade | Chemical Composition (%) | |||||||
| C | Si | Mn | P | S | Ni | Cr | Mo | |
| 201 | 0.15 | 1.00 | 5.5~7.5 | 0.060 | 0.030 | 3.50~5.50 | 16.00~18.00 | |
| 301 | 0.15 | 1.00 | 2.00 | 0.045 | 0.030 | 6.00~8.00 | 16.00~18.00 | |
| 302 | 0.15 | 1.00 | 2.00 | 0.045 | 0.030 | 8.00~10.00 | 17.00~19.00 | |
| 304 | 0.08 | 1.00 | 2.00 | 0.045 | 0.030 | 8.00~10.50 | 18.00~20.00 | - |
| 304L | 0.030 | 1.00 | 2.00 | 0.045 | 0.030 | 9.00~13.50 | 18.00~20.00 | - |
| 316 | 0.045 | 1.00 | 2.00 | 0.045 | 0.030 | 10.00~14.00 | 10.00~18.00 | 2.00~3.00 |
| 316L | 0.030 | 1.00 | 2.00 | 0.045 | 0.030 | 12.00~15.00 | 16.00~18.00 | 2.00~3.00 |
| 430 | 0.12 | 0.75 | 1.00 | 0.040 | 0.030 | 0.60 | 16.00~18.00 | - |
| 430A | 0.06 | 0.50 | 0.50 | 0.030 | 0.50 | 0.25 | 14.00~17.00 | - |
| Material | Austenite Stainless Steel:Rs-2,317L,904L,253Ma(S30815),254SMo(F44/S31254) |
| Biphase stainless steel F51(S31803),F53(S32750),F55(S32760),329(S32900),A4 | |
| Hastelloy C276,Hastelloy C4, Hastelloy C22. Hastelloy B,Hastelloy B-2 | |
| Nitronic50(S20910/XM-19), Nitronic60(S21800/Alloy218), Alloy20Cb-3, Alloy31(N08031/1.4562) | |
| Incoloy825, 309S, Inconel601,A286, Alloy59, 316Ti, SUS347, 17-4PH Nickle201… Ect. | |
| Monel400, Monel k500, Ninckel200, Nickel201(N02201) | |
| Inconel600(N06600),Inconel601(N06601),Inconel625(N06625/NS336),Inconel718(N07718/GH4169),Inconelx-750(N07750/GH4145) | |
| Incoloy800H(NS112/N08810),Incoloy800HT(N08811),Incoloy800(NS111/N08800),Incoloy825(N08825/NS142), Incoloy901,Incoloy925(N09925),Incoloy926 | |
| 1J50,1J79,3J53,4J29(F15),4J36(Invar36) | |
| GH2132(incoloyA-286/S66286),GH3030,GH3128,BH4145(inconelx-750/N07750),GH4180(N07080/Nimonic80A) | |
| Logo | JYSS, also according to client’s requirements |
| MOQ | 1pcs at least, also according to size and material |
| One stop purchase | we help you with one stop purchasing, we could manufacture fasteners, flanges and also pipe fittings on these exotic materials. |
| OEM Accepted | Yes |
| Mill test certificate | Yes |
| Inspection report | Yes |
| Payment term | L/C T/T |
| Packing details | wodden case or as per customer requirement |
| Exported countries | United States, Germany, Saudi Arabia, South Korea, etc |
| Production Flow | Raw materials Inspection of raw materials Cutting Heating Forging stamping- |
| Drilling Machining Heating Treatment Washing Non-destructive examination | |
| Finished product Inspection |
Advantages:
1.Wooden case package which is strong and suitable for sea transportation is our main method to pack the pipes. And the economical packing method such as packed in bundles is also welcomed by some customers.
2.The tolerance control we use is D4/T4 (+/-0.1mm) on both inside and outside Diameter and Wall Thickness, which is much higher than international standard ASTM, DIN.
3.The surface condition is one of our main advantages: in order to meet different requirements for surface condition, we have annealing and pickling surface, bright annealing surface, OD polished surface, OD & ID polished surface etc.
4.In order to keep the inside surface of pipe clean and make it free from deburring, our company develops the unique and special technology — Sponge Washing with high pressure.8.We have complete after-sale service to deal with the problems in time.
