304 316 stainless steel pipe

Short Description:


  • Specifications : ASTM A/ASME SA213
  • Grade: 304,310, 310S, 314, 316
  • Techniques: Hot-rolled, cold-drawn
  • Length : 5.8M,6M,12M & Required Length
  • Product Detail

    Product Tags

    Specifications of stainless steel pipe::

    Seamless Pipes & Tubes Size : 1 / 8″ NB – 12″ NB

    Specifications : ASTM A/ASME SA213, A249, A269, A312, A358, A790

    Standard : ASTM, ASME

    Grade: 304,310, 310S, 314, 316,316L, 321,347, 904L, 2205, 2507

    Techniques: Hot-rolled, cold-drawn

    Length :5.8M,6M,12M & Required Length

    Outer Diameter : 6.00 mm OD up to 914.4 mm OD

    Thickness : 0.6 mm to 12.7 mm

    Schedule : SCH. 5, 10, 20, 30, 40, 60, 80, 100, 120, 140, 160, XXS

    Types : Seamless Pipes

    Form : Round, Square, Rectangle, Hydraulic, Honed Tubes

    End : Plain End, Beveled End, Treaded



    Stainless Steel 316 /316L Seamless Pipes Equivalent Grades:
    STANDARD WERKSTOFF NR. UNS JIS BS AFNOR EN
    SS 304 1.4301 S30400 SUS 304 304S1 58E
    SS 316 1.4401 S31600 SUS 316 304S11 - 58E



    SS 304 / 316L Seamless Pipes Chemical Composition and Mechanical properties:
    Grade C Mn Si P S Cr Mo Ni
    S30400 0.08 max 2.0 max 1.00 max 0.045 max 0.030 max 18.00 – 20.00 8.00 – 11.00
    S31600 0.035 max 2.0 max 1.00 max 0.045 max 0.030 max 16.00 – 18.00
    2.00 – 3.00 10.00 – 14.00



    Grade Melting Point Tensile Strength Yield Strength (0.2%Offset)
    304 1040 °C (1900 °F) MPa – 515 MPa – 205
    316 1100-1170 °C (2010-2140 °F)  MPa – 515 MPa – 205



    Why Choose Us

    1. You can get the perfect material according to your requirement at the least possible price.
    2. We also offer Reworks, FOB, CFR, CIF, and door to door delivery prices. We suggest you to do deal for shipping which will be quite economical.
    3. The materials we provide are completely verifiable, right from raw material test certificate to the final dimensional statement.(Reports will show on requirement)
    4. e guarantee to give a response within 24hours(usually in the same hour)
    5. You can get stock alternatives, mill deliveries with minimizing manufacturing time.
    6. We are fully dedicated to our customers. If it will not possible to meet your requirements after examining all options, we will not mislead you by making false promises which will create good customer relations.



    Quality Assurance (including both Destructive and Non-Destructive) :

    1. Visual Dimension Test
    2. Mechanical examining like tensile, Elongation and reduction of area.
    3. Large-scale test
    4. Chemical examination analysis
    5. Hardness test
    6. Pitting protection test
    7. Flaring Testing
    8. Water-Jet Test
    9. Penetrant Test
    10. X-ray test
    11. Intergranular Corrosion Testing
    12. Impact analysis
    13. Eddy current examining
    14. Hydrostatic analysis
    15. Metallography Experimental Test

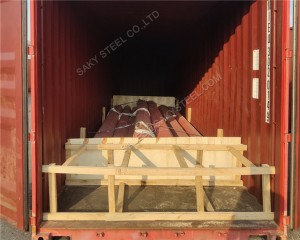

    Packaging:

    1. Packing is quite important especially in a case of international shipments in which consignment pass through various channels to reach the ultimate destination, so we put special concern regarding packaging.
    2. Saky Steel’s pack our goods in numerous ways based on the products. We pack our products in multiple ways, such as,

    Shrink-wrapped
    Carton boxes
    Wooden pallets
    Wooden boxes
    Wooden crates

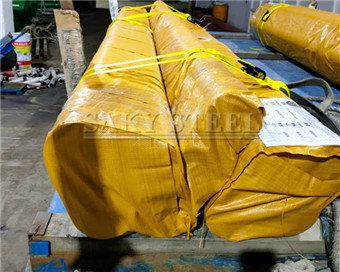

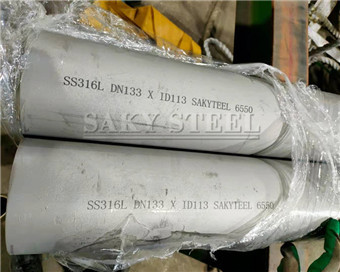

    304 316 stainless steel pipe package     304 316 stainless steel seamless pipe package



    Applications:

    1. Paper & Pulp Companies
    2. High Pressure Applications
    3. Oil and Gas Industry
    4. Chemical Refinery
    5. Pipeline
    6. High Temperature Application
    7. Water Pipe Lin
    8. Nuclear Power Plants
    9. Food Processing and Dairy Industries
    10. Boiler & Heat Exchangers

    More details:
     SN (GB) (DIN) (JIS) AISI/ASTM UNS SAE (ISO)
    1 1Cr17Mn6Ni5N   SUS201 201 S20100 30201 A-2
    2 1Cr18Mn8Ni5N X8CrMnNi189 SUS202 202 S20200 30202 A-3
    3 1Cr18Mn10Ni5Mo3N
    4 2Cr13Mn9Ni4
    5 1Cr17Ni7 X12CrNi17.7 SUS301 301 S30100 30301 14
    6 1Cr17Ni8 X12CrNi17.7 SUS301J1
    7 1Cr18Ni9 X12CrNi18.8 SUS302 302 S30200 30302 12
    8 Y1Cr18Ni9 X12CrNiSi18.8 SUS303 303 S30300 30303 17
    9 Y1Cr18Ni9Se   SUS303Se 303Se S30323 30303Se 17
    10 1Cr18Ni9Si3 X12CrNiSi18.8 SUS302B 302B S30215 30302B
    11 0Cr18Ni9 X5CrNi18.9 SUS304 304 S30400 30304 11
    12 00Cr18Ni10 X2CrNi18.9 SUS304L 304L S30403 30304L 10
    13 0Cr19Ni9N   SUS404N1 304N S30451
    14 0Cr19Ni10NbN X5CrNiNb18.9 SUS304N2 XM21 S30452
    15 00Cr18Ni10N X2CrNiN18.10 SUS304LN 304LN S30453
    16 1Cr18Ni12 X5CrNi19.11 SUS305 305 S30500 30305 13
    17 0Cr18Ni12 X5CrNi19.11
    18 0Cr23Ni13 X7CrNi23.14 SUS309S
    19 0Cr25Ni20   SUS310S
    20 0Cr17Ni12Mo2 X5CrNiMo18.10 SUS316 316 S31600 30316 20,20a
    21 1Cr17Ni12Mo2
    22 0Cr18Ni12Mo2Ti X10CrNiMoTi18.10
    23 1Cr18Ni12Mo2Ti X10CrNiMoTi18.10
    24 00Cr17Ni14Mo2 X2CrNiMo18.10 SUS316L 316L S31603 30316L 19,19a
    25 0Cr17Ni12Mo2N   SUS316N 316N S31651
    26 00Cr17Ni13Mo2N X2CrNiMoNi18.12 SUS316LN 316LN S31653
    27 0Cr18Ni12Mo2Cu2   SUS316J1
    28 00Cr18Ni14Mo2Cu2
    SUS316J11
